Underground Power Cable Manufacturers

Huadong underground power cable
Huadong Underground Power Cable

Please kindly send us your inquiry underground power cable list and order quantity, our sales manager will send our offer documents to you within 12 hours. Email: sales@huadongswacable.com

Product Description

huadong cheap underground power cable sizes

Standards: BS6622,  IEC 60502, BS 7870, etc.
Conductor: Copper / Aluminium
Conductor screen: Semi-conducting material
Insulation: XLPE
Insulation Screen: Semi-conducting material
Metallic Screen: copper tape screen
Filler: PETP or PVC
Armouring: AWA / SWA / STA
Sheath: PVC or PE
Colour: Red or Black
Voltage Rating: Up to 35kV
Temperature Rating: 0°C to +90°C
Packaging Details: 250M/Drum, 500M/Drum, 1000M/Drum, also can be as request. Email: sales@huadongswacable.com

Custom Service: Huadong Cable Group provide custom service for every customer. We will manufacture underground power cable in line with your requirements.

Starting customize your ideal size, our factory price will send you within 12 hours.
Email: sales@huadongswacable.com

What’s the underground power cable structure?

Underground power cable usually consists of several or several groups of wires. Every group conductor are stranded by two wires at least, just similar to the construction of the rope. We put insulating layer to each set of wires from one another. In general, these wires has twisted around a center and covered with a highly insulating covering. Underground armoured cable consists of four parts of the conductor core, an insulating layer, the protective sealing sheath and the cover layer. If you are ready to buy underground power cable, just to tell us your requirements. Huadong Cable Group will be happy to serve you. Email: sales@huadongswacable.com

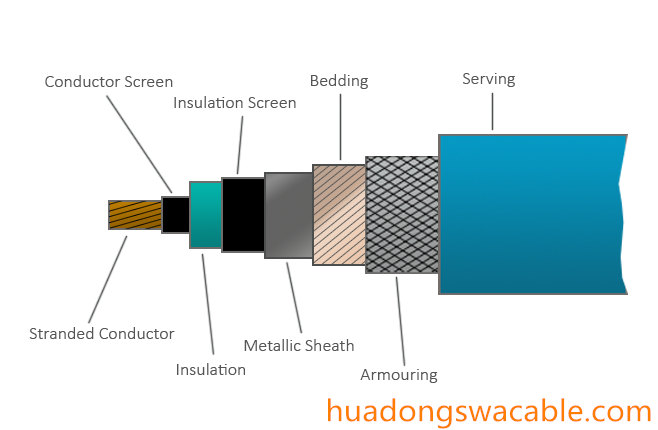

underground armoured cable structure
Huadong Underground Armoured Cable Structure

What is conductor of underground armoured cable?

The conductor materials of underground armoured cable are generally high conductivity copper or aluminum. According to laying conditions of use, there are different degrees of flexibility requirements of the underground armored cable. So each conductor core may be a single wire or multiple strands twisted together. If you want to know more details about conductor of underground power cable, please contact us. Email: sales@huadongswacable.com

underground power cable conductor
Underground Power Cable Conductor: Copper & Aluminum

What are materials of underground armored cable insulating layer?

As we all know, insulation materials of underground power cable should have high insulation resistance. Insulation materials commonly are PVC, polyethylene, cross-linked polyethylene (XLPE). As well as oil-impregnated paper, rubber and so on. If you have any question, please fell free to tell us. Email: sales@huadongswacable.com

underground armoured cable insulation
Underground Armoured Cable Insulation: XLPE & PVC

What is the role of underground power cable protective sealing sheath?

The protective sealing sheath protect the insulated core from mechanical, moisture, chemicals, light and other damage. For moisture-sensitive insulation, we usually use lead or aluminum extrusion seal sheath. If you have special requirements, just tell us. Huadong Cable Group provide custom service for you. Email: sales@huadongswacable.com

underground power cable SWA STA
Underground Power Cable Armoured Layer : SWA & STA

What is the role of underground power cable cover layer?

The cover layer protect the seal sheath from mechanical damage. Cover layer generally use galvanized steel wire, steel tape and other armor wrapped around the sheath (called underground armoured cable). Armour cover layer can also play an electric field shielding and prevent electromagnetic interference from the outside world. In order to avoid steel tape, steel wire by the surrounding medium of corrosion, we are usually covering with asphalt or covering with jute impregnated or extruded polyethylene, PVC. Tell us what kind of underground armoured cable do you want, then start a pleasant journey of cooperative. Email: sales@huadongswacable.com

huadong underground armored cable
Huadong All Kinds Of Underground Armored Cable

Why Choose Us?

Product Process: Our armoured cable use the high quality aluminum/annealed copper conductor material and natural XLPE (cross-linked polyethylene)/PVC polyvinyl chloride insulation material. Every production process has been strictly checked by our professional technical engineers. Email: sales@huadongswacable.com

Huadong Underground Power Cable Production Process

Huadong discount cheap underground power cable Production Process
Huadong Underground Power Cable Production Process

Custom Service: Huadong Cable Group provide custom service for every customer. We will manufacture 5 core armoured cable or 3 core swa cable in line with your requirements.

Starting customize your ideal size, our factory price will send you within 12 hours.
Email: sales@huadongswacable.com

Huadong Underground  Cable Factory Display

Huadong Underground Power Cable Factory
Huadong Underground Power Cable Factory

Huadong Underdroumd Power Cable Stock
Huadong Underdroumd Power Cable Stock

Package & Delivery: Underground power cable package by iron or wooden drum or according to client’s requriement.

huadong underground armoured cable packaging
Huadong Underground Armoured Cable Packaging

Customer Case: Our underground armoured power cable products have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, The Philippines, Middle East, Africa, Asia, Oceania countries, etc. Email: sales@huadongswacable.com

huadong underground armoured cable group customer cases
Huadong Underground Armoured Cable Group Customer Cases
